ANTENNAGPS and GSMMagnetic MountWaterproofSMA Connector

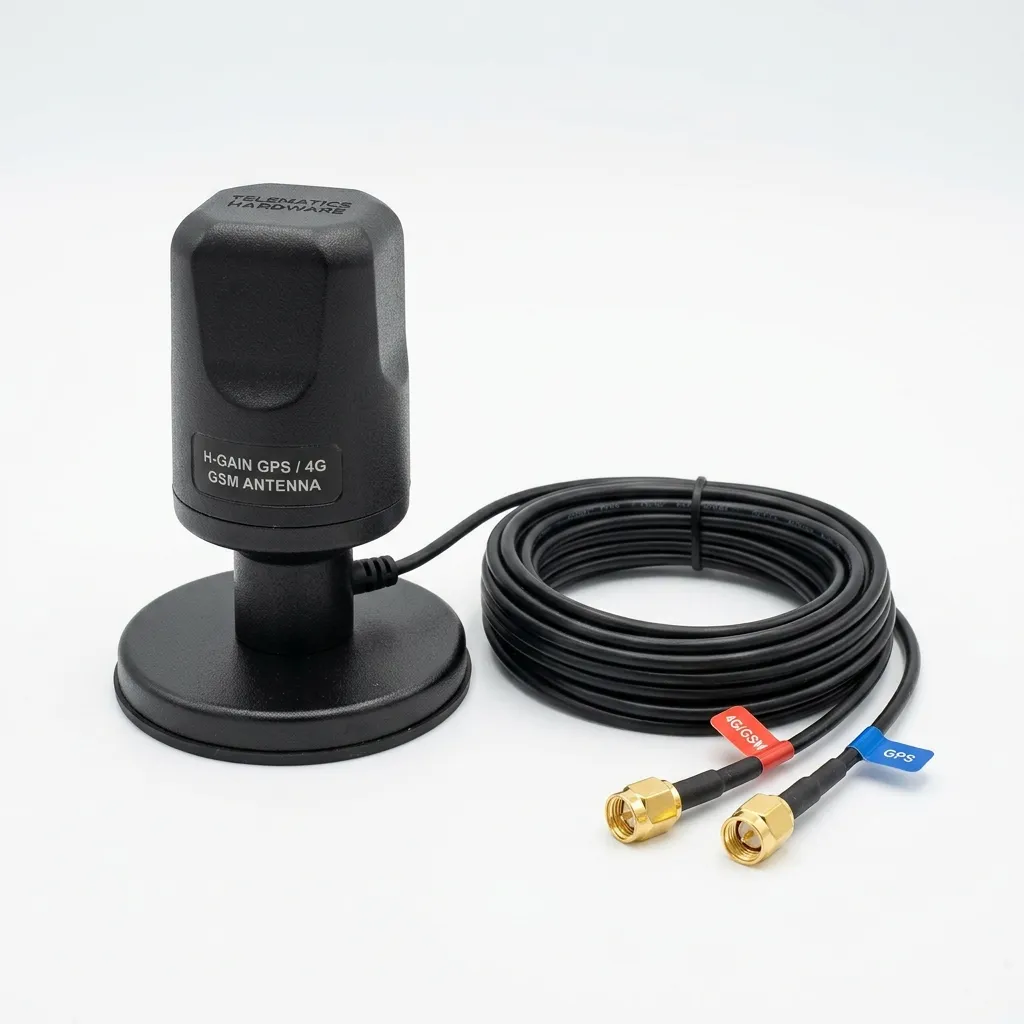

High-Gain Antenna

External high-gain GPS and GSM antenna for improved signal in challenging environments metal-body vehicles, remote areas, underground facilities, and dense urban canyons.

High-Gain Antenna

Technical Specifications

TypeCombined GPS + GSM dual-band external antenna
GPS Gain+28 dBi active GPS patch antenna
GSM Gain+3 dBi omnidirectional GSM/LTE element
ConnectorSMA male (Teltonika compatible)
Cable Length3 m (options: 1 m, 3 m, 5 m)
MountingStrong magnetic base sticks to any steel surface
ProtectionIP67 waterproof and dustproof
Operating Temp-40C to +85C

Key Features

✓
High-gain active GPS antenna boosts signal by up to 28 dBi
✓
Dramatically improves positioning accuracy in metal-body vehicles and machinery
✓
Magnetic base mounts instantly on any steel roof, bonnet, or panel
✓
Combined GPS + GSM in one cable single run, dual function
✓
IP67 waterproof withstands rain, pressure washing, and submersion
✓
SMA connector compatible with all Teltonika FMB/FMC/FMM trackers
✓
Flexible 3 m cable routes through vehicle A-pillar or door seal
✓
Eliminates cold-start delays satellite fix in under 10 seconds

Frequently Asked Questions

How is the High-Gain Antenna installed on a Kenyan fleet vehicle?

TrackAlways technicians install the High-Gain Antenna at your yard or a partner workshop in Nairobi and regional towns. Most light-vehicle installs take 45–90 minutes; tank sensors and trailer locks take longer because of calibration and mounting.

Is the High-Gain Antenna compatible with the Venus fleet platform?

Yes. The High-Gain Antenna is sold and supported as part of TrackAlways deployments on Venus, so live data, alerts, and history appear in the same East Africa fleet dashboard used in Kenya, Uganda, Tanzania, Rwanda, and Ethiopia.

What battery or power setup does the High-Gain Antenna use?

Power depends on the model. Wired trackers run from the vehicle 12V/24V supply with a backup cell; e-locks and BLE sensors use their own packs. Use the specifications on this page for the exact capacity and standby time.

How is the High-Gain Antenna priced in Kenya?

Hardware is quoted per unit plus a Venus subscription after a fleet assessment. Call +254 116 257 285 or email sales@trackalwaysafrica.com with vehicle count and use case for a Kenya or East Africa quote.
